Product Overview:

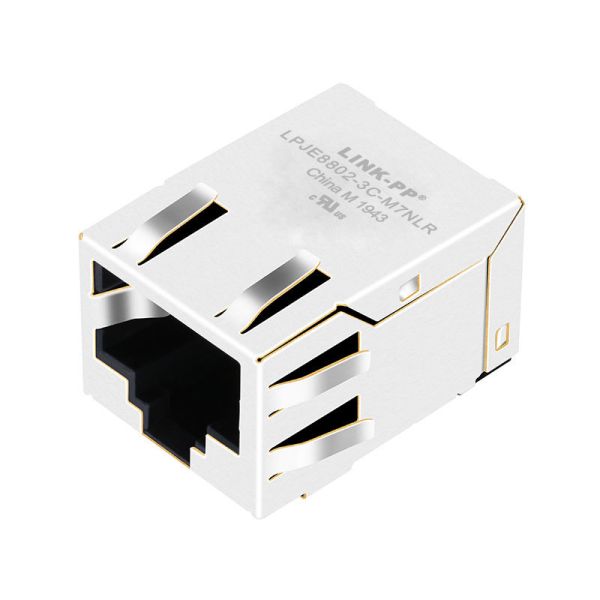

The LPJE8802-3C-M7NLR is a compact, shielded RJ45 8P8C SMD modular jack designed for high-speed Ethernet and communication devices.
It offers superior signal integrity, stable contact performance, and compliance with UL safety standards.
With a latch-down design and SMD reflow compatibility, it is ideal for automated PCB assembly in compact networking equipment.
Electrical Specifications:
| Parameter | Specification |
| Voltage Rating | 125V AC |
| Current Rating | 1.5A |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC (50/60Hz, 1 min) |
Mechanical Specifications:
| Parameter | Specification |
| Housing Material | PA9T, Black, UL 94V-0 Flame Retardant |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold ≥ 6 µin (in contact area) |
| Shield Material | Brass, Nickel Alloy Plated |
| Mating Cycles | ≥ 750 Cycles |
Environmental Characteristics:
| Parameter | Specification |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Soldering Method | IR Reflow Compatible |
| UL Certification | File No. E484635 |
IR Reflow Soldering Profile:
| Stage | Temperature | Duration |
| Preheat (TA–TB) | 150–200°C | 60–180s |
| Holding (TL) | 217°C | 60–150s |
| Peak (TP) | 255°C (+0/-5°C) | ≤ 5s |
| Heating Rate | ≤ 3°C/s | |
| Cooling Rate | ≤ 6°C/s | |
| Total Reflow Time (25°C → out of oven) | ≤ 6 minutes | |
Typical Applications:
- Ethernet Switches and Routers
- Network Interface Cards (NICs)
- Industrial Automation Controllers
- IP Cameras and Smart Terminals
- Embedded Communication Modules
LPJE8802-3C-M7NLR 8P8C RJ45 Modjack Drawing:
Packaging Information:
- Packaging Type: Tape & Reel
- Quantity per Reel: 110 pcs
- Arrangement: Products arranged in sequence with 11 empty positions at both ends
- Labeling: Includes plug, label, and protective bag
- Orientation: As per drawing (Latch Down)
