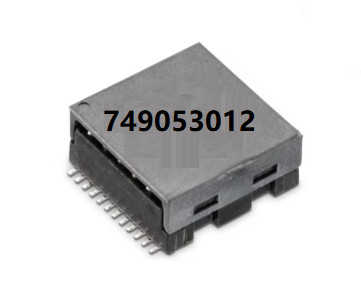

749053012 LAN Magnetics 10Gbit Base-T Transformer Modules

Name: 749053012 LAN Magnetics 10Gbit BaseT Transformer Modules
Brand: LINK-PP
Price: 1.85 USD

Brand Name : LINK-PP

Model Number : 749053012

Certification : UL,RoHS,REACH,ISO

Place of Origin : China

MOQ : 50pcs

Price : $1.85

Payment Terms : TT, NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : 1-2 Weeks

Packaging Details : Tray

Type : LAN Transformer Modules

Frequency Range : 100 kHz to 500 MHz

Inductance : 200 uH

Isolation Voltage : 1.5 kVAC

Termination Style : SMT

Operating Temperature : -40 °C up to +85 °C

Data Rate : 10GBASE-T

PoE Support : PoE (up to 350 mA)

Contact Now

The 749053012 10GBASE-T LAN transformer is designed to meet the demands of next-generation Ethernet applications. This surface-mount transformer ensures robust signal integrity and reliability for high-speed data transmission.

Electrical Properties (749053012 Transformer)

Property	Test Conditions	Value	Unit	Tolerance
Inductance (OCL)	100kHz / 100mV @ 8mA DC-Bias	200	µH	min.
Turns Ratio (TR)	100kHz / 100mV	1:1	—	±2%
Insertion Loss (IL)	100kHz–1MHz	-3.0	dB	max.
	1MHz–250MHz	-1.0	dB	max.
	250MHz–500MHz	-3.0	dB	max.
Return Loss (RL)	1–40MHz	-20.0	dB	min.
	100MHz	-16.0	dB	min.
	200MHz	-13.0	dB	min.
	250MHz	-11.2	dB	min.
	400MHz	-10.0	dB	min.
	500MHz	-8.0	dB	min.
Common to Differential Mode Rejection (CDMR)	1MHz–100MHz	-35.0	dB	min.
	100MHz–250MHz	-30.0	dB	min.
	250MHz–500MHz	-25.0	dB	min.
Common to Common Mode Rejection (CMRR)	1MHz–100MHz	-35.0	dB	min.
	100MHz–300MHz	-30.0	dB	min.
	300MHz–500MHz	-25.0	dB	min.
Crosstalk (CT)	1MHz–100MHz	-40.0	dB	min.
	100MHz–500MHz	-30.0	dB	min.
